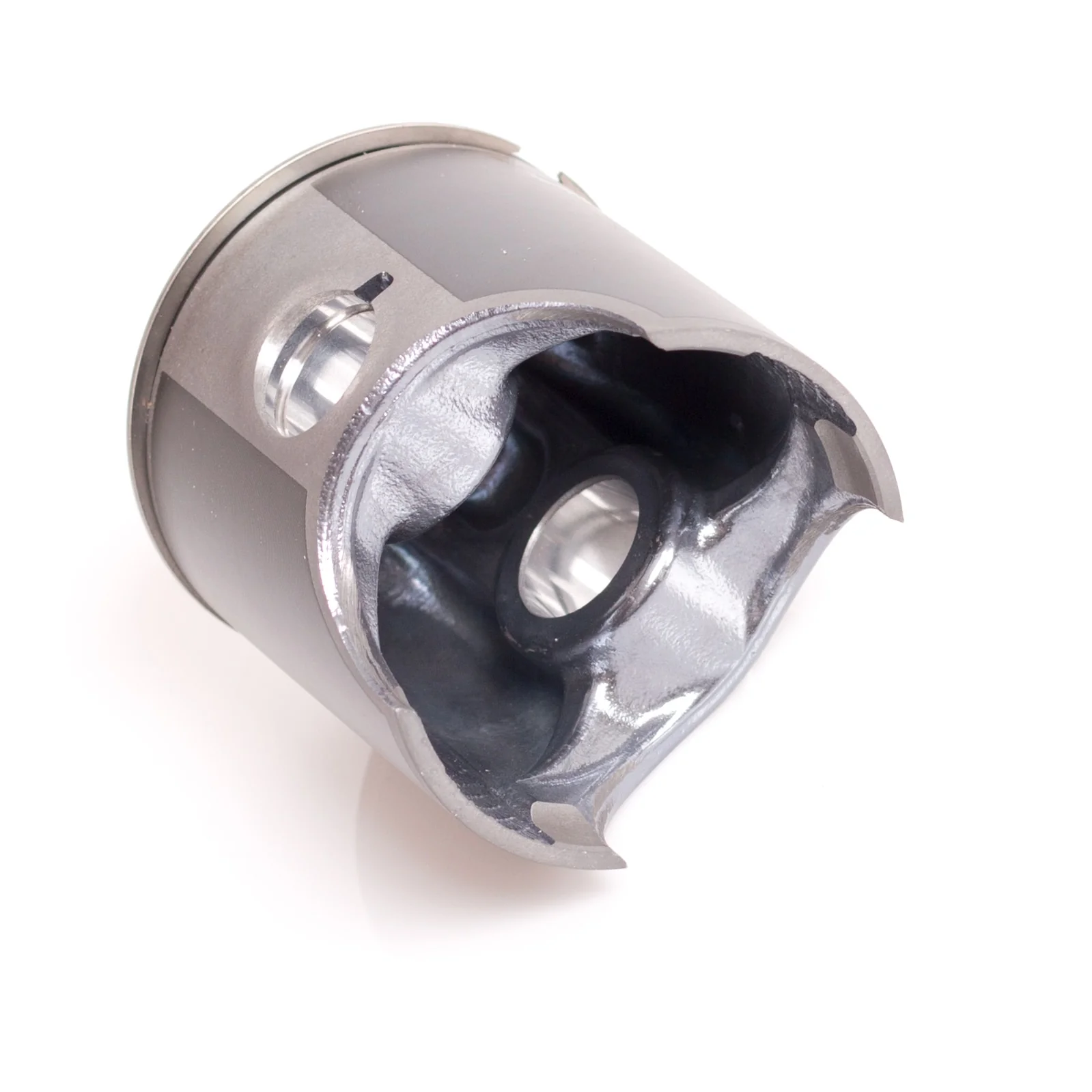

Piston Rotax Max
Piston that fits all model years of the Rotax Max engine.
As standard, the engines are delivered with a piston clearance (i.e. the distance between the piston and the cylinder) of 0.04 – 0.05 mm. Maximum wear corresponds to a piston clearance of approximately 0.08 mm and must not exceed 0.1 mm.
Refer to the Rotax Max engine manual to learn how to measure the piston clearance on a Rotax Max engine.
The piston is supplied with a piston ring. Always remember to purchase new circlips for the piston. They must not be reused. See recommended accessories below.
Fits
- Rotax Micro Max
- Rotax Mini Max
- Rotax Junior Max
- Rotax Senior Max
- Rotax Max DD2
Piston that fits all model years of the Rotax Max engine.
As standard, the engines are delivered with a piston clearance (i.e. the distance between the piston and the cylinder) of 0.04 – 0.05 mm. Maximum wear corresponds to a piston clearance of approximately 0.08 mm and must not exceed 0.1 mm.
Refer to the Rotax Max engine manual to learn how to measure the piston clearance on a Rotax Max engine.
The piston is supplied with a piston ring. Always remember to purchase new circlips for the piston. They must not be reused. See recommended accessories below.
Fits
- Rotax Micro Max
- Rotax Mini Max
- Rotax Junior Max
- Rotax Senior Max
- Rotax Max DD2
Original: $129.82
-70%$129.82
$38.95Description
Piston that fits all model years of the Rotax Max engine.
As standard, the engines are delivered with a piston clearance (i.e. the distance between the piston and the cylinder) of 0.04 – 0.05 mm. Maximum wear corresponds to a piston clearance of approximately 0.08 mm and must not exceed 0.1 mm.
Refer to the Rotax Max engine manual to learn how to measure the piston clearance on a Rotax Max engine.
The piston is supplied with a piston ring. Always remember to purchase new circlips for the piston. They must not be reused. See recommended accessories below.
Fits
- Rotax Micro Max
- Rotax Mini Max
- Rotax Junior Max
- Rotax Senior Max
- Rotax Max DD2
